Horizontal model

Ultra low energy consumption building environmental control integrated machine (horizontal machine)

It integrates cooling, heating, dehumidification, fresh air replacement and energy recovery functions.

Scope of application

Ultra-low energy consumption residential buildings, villas and basements, apartment buildings, office buildings, hotel rooms, test rooms, archives rooms and other places.

Constant temperature and oxygen
Filter and remove haze
Isothermal dehumidification
Ultra low energy consumption
Modular design
Intelligent frequency conversion
Ultra low temperature operation

Switch

This system consists of a high-definition touch screen and multiple indoor sensors, which accurately collect indoor temperature, humidity, CO2, and PM2.5 values, and intelligently regulate the indoor air environment according to the set parameters. The device can be connected to a mobile app, and the operation status of the control unit can be viewed anytime and anywhere through the phone

Filter configuration

Efficient filter: Efficient filter material, PM2.5 one-time filtration 99%;

Primary filter: washable. Filter large particles, leaves, hair, mosquitoes, etc

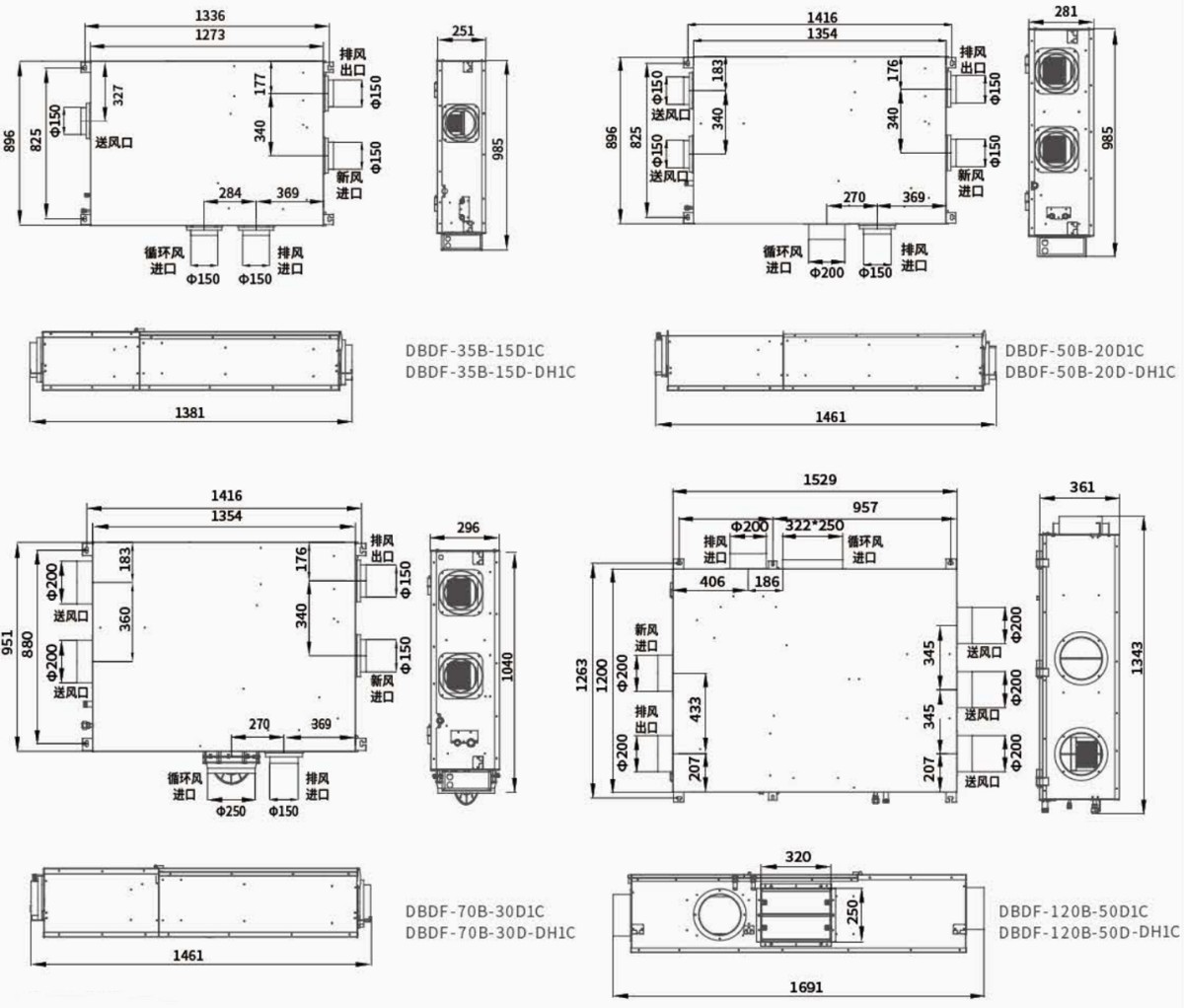

Main unit size parameters

Product Parameters

Model	Fresh air volume (m³/h)	Air supply volume (m³/h)	Dehumidification capacity (kg/h)	Refrigeration heat exchange rate (%)	Heating heat exchange rate (%)	Cooling capacity (W)	Heating capacity (W)	Feed /discharge port static pressure (Pa)	Indoor unit noise (dB(A))	power supply	Rated cooling capacity (W)	Rated heating power (W)	Mass (kg)	Outdoor unit adapter
DBDF-35B-15D1C(-DH1C)	150	500	2	70	75	3500	3900	100/60	41	220V 50Hz	1160	1250	68(72)	W35-D1(-DH1)
DBDF-50B-20D1C(-DH1C)	200	800	2.4	70	75	5000	5400	100/60	44	220V 50Hz	1620	1720	80(85)	W50-D1(-DH1)
DBDF-70B-30D1C(-DH1C)	300	1100	3.8	67	75	7000	7700	100/60	47	220V 50Hz	2400	2450	85(90)	W70-D1(-DH1)
DBDF-120B-50D1C(-DH1C)	500	1800	6.5	62	70	12000	13000	200/100	52	220V 50Hz	4400	3800	115(120)	W120-D1(-DH1)

★ The machine must not be installed upside down. The inspection door should face down. Horizontal models are divided into left and right types. The indoor unit in the picture is a right type.

★ The items in parentheses in the table are isothermal dehumidifier models and their corresponding parameters.

★ The method of differentiation is as follows: After correct installation, when facing the air supply vent, if the air circulation vent is on the left, it is a left-side type; if the air circulation vent is on the right, it is a right-side type.

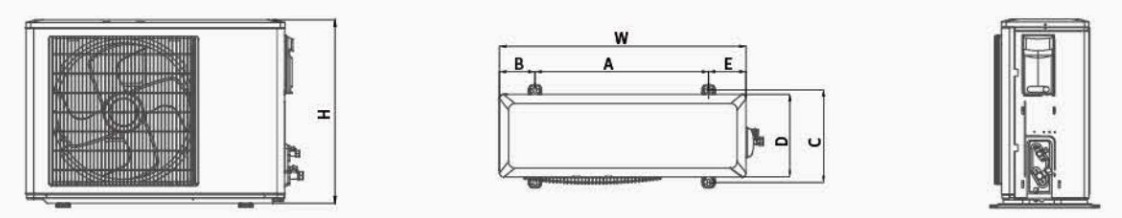

Outdoor unit dimensions diagram

Outdoor unit dimensions

Model	W	D	H	A	B	C	E	External machine noise (dB(A))	Power supply	External machine quality (kg)
W-35D1(-DH1)	760	255	540	535	110	286	115	49	320Y	31(32)
W-50D1(-DH1)	865	310	710	628	121	335	116	52	302	43.5(45)
W-70D1(-DH1)	1000	390	833	698	151	420	151	56	30H	65.5(67.5)
W-120D1(-DH1)	1000	390	1358	698	151	420	151	60	3802	103(105)
